Low E Insulating Glass Machine PLC Control , Glass Edge Deletion 0 To 15 M / Min

Product Categories
Jinan Lijiang Automation Equipment Co., Ltd.
Contact Now

Low E Insulating Glass Machine PLC Control , Glass Edge Deletion 0 To 15 M / Min

Brand Name : LIJIANG GLASS

Model Number : LJDM2545

Certification : CE

Place of Origin : JINAN,CHINA

MOQ : One set

Price : Negotiable

Supply Ability : 60 sets per year

Delivery Time : 30 days

Packaging Details : Container

Name : Low-e glass edge deletion machine

Max.glass processing size : 2500*4500mm

Min.glass processing size : 350*500mm

Glass thickness : 3-19mm

Edge deleting width : 10-50mm

Glass conveyor speed : 30m/min

Edge deleting speed : 0-15m/min

Abrasive wheel width : 10/12/15mm

Contact Now

Low E Insulating Glass Machine PLC Control , Glass Edge Deletion 0 To 15 M / Min

Low-e glass edge deletion machine is used to finish the low-e glass four sides with different grinding wheels.

Technical data

Production name Smart glass edge deletion machine
Application Smart Low-e glass edge deletion machine
Max glass machine 2500*4500mm
Min.glass processing size 400*400mm
Glass thickness 3-15mm
Diameter of grinding wheel 200mm
Conveyor height 500mm
Edge deleting width 10-50mm
Transmission speed 2- 29m/min
Edge deleting speed 2-29m/min
Abrasive wheel width 10/12/15mm
Grinding wheel speed 0~3000r/min
Total air consumption 100L/ min
Air pressure ≥0.8MPa
Total power 3P 380V 50Hz 3.35KW

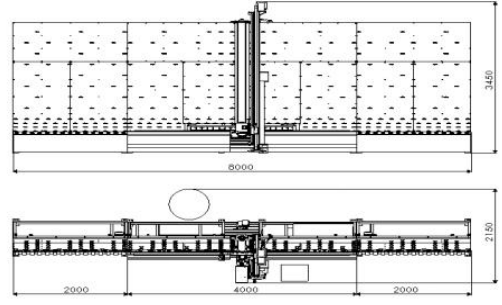

Dimension Dimensions :9700×2500×3400mm
Total weight 3680KG

Low E Insulating Glass Machine PLC Control , Glass Edge Deletion 0 To 15 M / Min

Main features:

  • PLC control system,touch screen interface
  • Six servos control system
  • Two-way glass access
  • Automatically measure size
  • Automatically distinguish low-e surface
  • Edge deletion is adjustable
  • Safe and full automatic device
  • Intelligent control system, can recognize batch processing

Low E Insulating Glass Machine PLC Control , Glass Edge Deletion 0 To 15 M / Min
